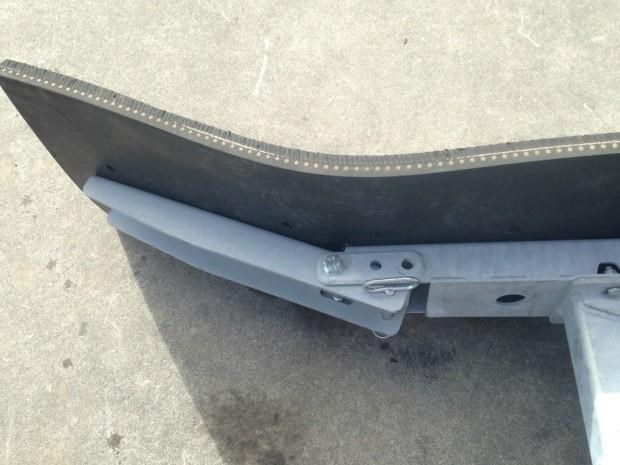

Zocon Rubber scraper 270 Threepoint (modular)
Specifications
Specifications
• Completely galvanized, robust & modular frame
• Threepoint and forklift input (190 x 70 mm)
• Adjustable edges available in 3 positions (0º, 20º, 40º)
• Reconditioned rubber with steel reïnforcement
• Movable pivot point (60˚) available with:
– Mechanic top link for movement blade
– Hydraulic cylinders for movement blade
• Working width 270cm
• Height rubber 40cm
• Length edges 38cm
Options
- Rubber with steel reinforcement
- Completely galvanized
- Standard version: ridged bla
- Mechanical version: mechanical movable blade
- Hydrulical version: hydraulical moveable blade
